I’ve searched high and low for this information, and I couldn’t find it online. After I figured it out myself, I thought I should share. A recent annoyance with our cars has been the lack of AUX-in jacks for my iPod/iPhone. I’ve experimented with RF modulators, and I hate them. None of the ones I’ve tried perform as well as I think they should.
So the goal was to have a headphone-style input jack in each car. I don’t care about controlling the iPod or charging it, just getting the sound into the radio. Last month I did the conversion on the C240; it was already well documented on the internet.
The donor GMC is a 2004 with CD and tape deck. It does not have satellite or changer controls. (There are products on the market which will fully integrate an iPod with a radio which has changer controls. They cost a lot more than the $10 I spent.) In the 5 years I’ve had the truck, I’ve never put a cassette in the tape deck, so I figured that would be a good place to start. As it turns out, I can keep the tape deck functionality as well.
7mm socket and ratchet
soldering iron and supplies
Radio Shack #274-246 1/8″ Stereo Phone Jack
1/8″ to 1/8″ stereo patch cord
Before we go any further, I have to do the disclaimers: This worked for me, but I make no guarantees. Make these modifications at your own risk. If you are comfortable installing a car stereo or a set of fog lamps, you should be able to do this hack. If you fry your radio, your iPod, or your car, I take no responsibility.
If you’re OK with the risks, read on.
Here’s my radio:
(Ooh, look at those fingerprints! I really need to detail the poor truck.)
Start by disconnecting the ground terminal on the battery. This helps keep you from frying things or blowing fuses.
Remove the dash panel surrounding the radio, A/C, and speedometer. This should just snap off.
Use the 7mm socket to remove the three screws holding the radio. Slide the radio out and disconnect the antenna and multi-pin connector from the back. Take the radio inside to your workbench.
Pry open and remove the bottom panel of the radio. You should see the bottom of the tape mechanism. Remove the (4) 5mm bolts holding the tape deck, and turn the deck over.
At the rear of the deck you will see two multi-wire connectors running from the tape deck to the main board of the radio. You are interested in the smaller, 7-pin connector. Snip the wires connecting pins 5 and 7 to the main board. Snip them midway between the board and tape deck to allow room to work.
Decision time: if you don’t care about using the tape deck, you can solder the wires from your 1/8″ jack to the wires coming from the main board, and tape up the ends coming from the tape deck. If you want to retain the cassette, run another set of wires from the normally closed terminals of the jack to the tape deck.
Seal all of the connections with heat shrink tubing. Route the wires out through any convenient hole in the radio case. Connect the ground wire from the jack to the case of the radio. (I used one of the 5mm screws holding the tape mechanism for a ground point.) Close up the radio and head back to the garage. Reconnect the multi-pin socket and antenna, and mount the radio back in the dash.
Locate the jack on the dashboard, drill a suitable hole, and mount it. I located mine above the airbag cutoff switch. Reconnect the battery and test everything before completing reassembly of the dash.
You will have to put a tape in the cassette deck to make this hack work. If you’ve kept the deck wired in, it should work normally. When you plug the patch cord into the jack, the signal from the cassette is cut out and replaced by the AUX-IN signal.
That’s it. It took me less than 2 hours, including determination of which wires to cut.
If your radio is different, you can determine which wires to cut using an old pair of headphones. Cut off the plug and strip the wires so that you have one positive and one ground. (It doesn’t matter which side.) Play a tape. Touch the ground wire to a grounded part of the chassis, then briefly touch the other wire to each terminal. You should hear the signal from the tape deck on two pins (left and right.) BE VERY CAREFUL, as you will have to operate the radio while doing this step. You could zap yourself or your radio if you are not careful.
Further refinement of this hack could include finding a way to fool the radio into thinking there was a tape in the deck. I’m sure it could be done with a relay installed at the proper location, but I didn’t take the time to locate the right spot.
Remember, you are on your own for safety and liability. Good luck and happy listening.
26 thoughts on “How to hack an AUX input into a Delco tape deck for $10”
This is exactly the hack I was looking for. Thanks for pioneering for the rest of us.
This is exactly the hack I was looking for. Thanks for pioneering for the rest of us.
[…] In the car, podcasts have taken over my time. I’ve found regular shows covering fire & EMS subjects which interest me; I get my laughs from Click & Clack and Garrison Keillor; and I’ve discovered that news occurs on all seven continents thanks to the BBC. Did you know that the World Cup trophy is currently touring South Africa, or that the Cubans are encouraging foreign investors to build golf resorts? If you did, I bet you didn’t learn it from NBC or CNN. […]
Thank you. I have a deck in an ’02 LeSabre that has a bad tape head that seems to “sum” everything to mono, so the cassette adapter I was using wasn’t providing very good audio, and as you said, the FM modulators are underpowered garbage. After spending two days trying to jack in to the circuit at points in the tape deck module – somehow the tape head was still part of the circuit and was summing even external signals – I ran across your blog post when I was about to give up. I had a feeling two of those wires sent clean, line-level left and right back to the amps, but I didn’t know which ones, and I didn’t feel like blowing up my iPod if I accidentally touched it to the 12V line in my search for the right wires. But you found ’em. I got a patch cable right in there, and it works like a charm. One thing, at least on mine, if you get a thin stick and use it to push on the vertical plastic piece that the tape hits when it goes in the deck, there’s a good chance it’ll just engage the mechanism and think there’s a tape in there, forever, which allows you to switch to the tape source anytime you want, without having a tape in there.
I should also mention I had access to the deck out of my father in law’s old ’01 LeSabre, which worked perfectly fine with the cassette adapter, but thanks to TheftLock II, despite the head unit fitting in my dash, I couldn’t make it work. GM needs to get real with this Theftlock crap. Nobody steals factory head units anymore, and the professional chop shops that do deal in black market car parts have the means and the money to get their hands on the $3,000 “Tech II” computer that can reprogram the decks and defeat Theftlock. So it appears that the only people really hurt by this technology are honest consumers like me, who in a bad economy find a better way to fix things.
Thanks much for your post. You saved me a lot of money, a lot of frustration, and helped me win one against a real cluster.
call me dumb… but how do you know which pin is which? what end do i count from? lol
Pin 1 is the striped wire.
The optimist sees the glass as half full; the pessimist as half empty. The engineer sees the glass as twice as large as necessary
thanks alot, doing this on a buick park ave. novice at electronics wiring.

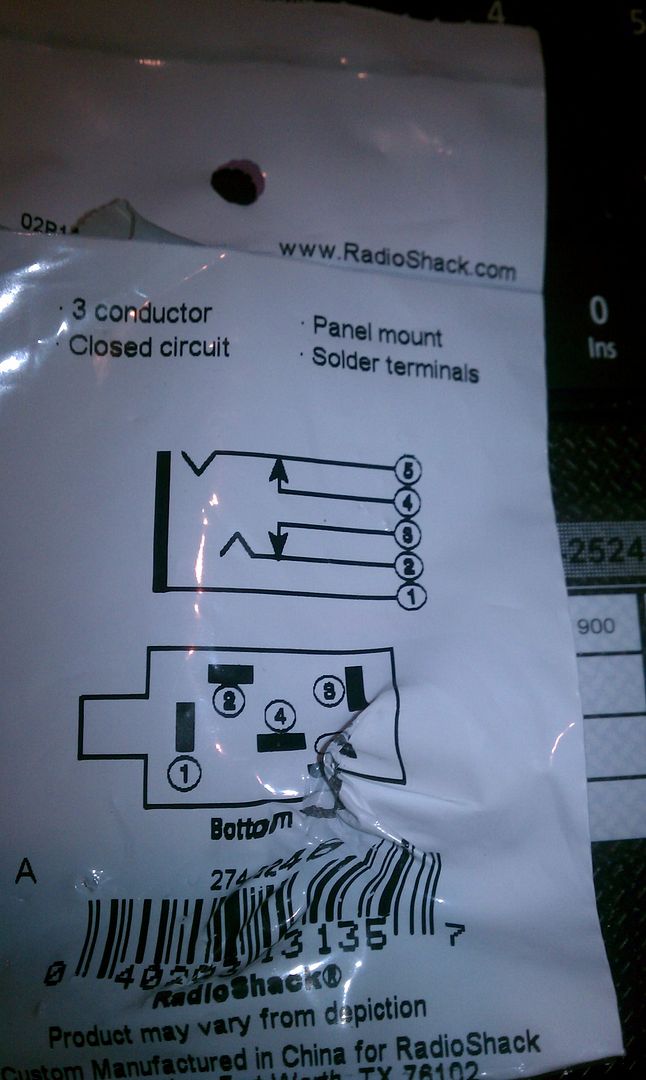

ok, im offically stumped. ive spent the last few hours trying to figure out whats what on this jack but i cant really find an answer. i have no clue how to read the diagram on the back of the jack he said to buy. here is a link to a picture i took of the back of the radioshack bag. if someone could please explain what goes where i would be eternally grateful lol.
